This guide explains the key differences between thermoplastics and thermosets, both of which can be used as high-performance engineering resins. Learn how their properties and performance can help you choose the right material for demanding applications.

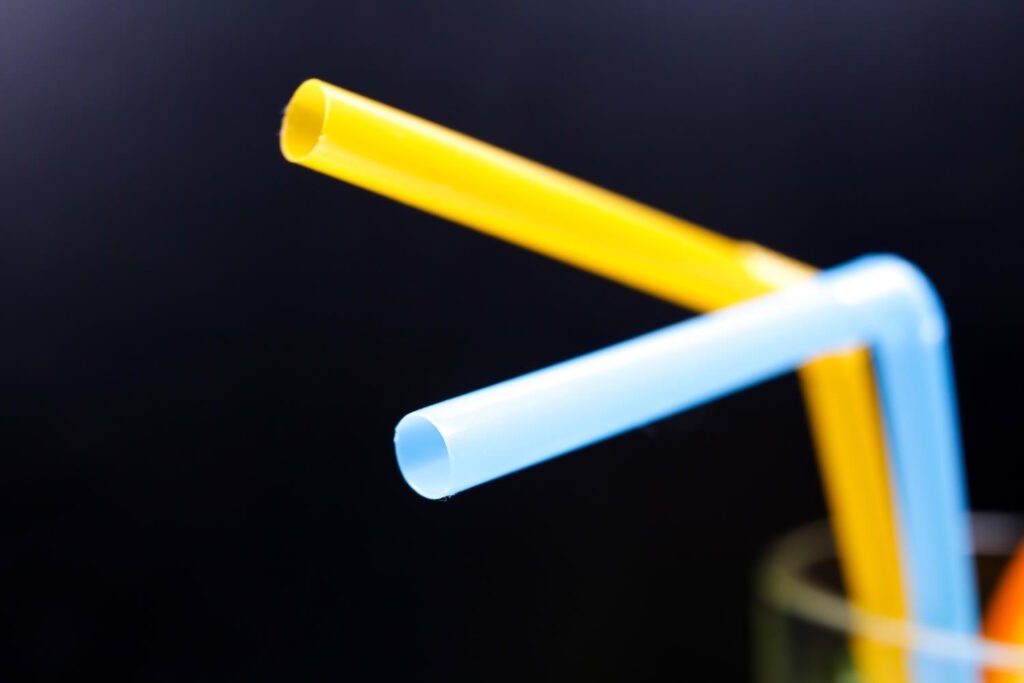

Understanding Thermoplastics
Thermoplastics are polymeric materials characterized by their ability to be repeatedly heated, melted, and reshaped without significant chemical degradation. This reversible process occurs because thermoplastic molecules are held together by relatively weak intermolecular forces rather than permanent chemical bonds.
The molecular structure of thermoplastics consists of long polymer chains that can slide past one another when heated above their glass transition temperature. This mobility allows the material to flow and take new shapes during processing, then solidify upon cooling while retaining the ability to be reprocessed multiple times.
Key Properties of Thermoplastics
Thermoplastics offer several advantages that make them attractive for engineering applications. Their recyclability stands out as a significant environmental benefit, allowing manufacturers to reprocess scrap material and reduce waste. The ability to weld thermoplastic components using heat creates strong, seamless joints that maintain material properties across the bond line.
Processing flexibility represents another major advantage. Thermoplastics can be shaped using various manufacturing techniques, including injection molding products, extrusion, blow molding, and thermoforming. This versatility enables cost-effective production of complex geometries and thin-walled components.
However, thermoplastics also have limitations. They typically exhibit lower heat resistance compared to thermosets, with mechanical properties degrading at elevated temperatures. Creep resistance—the ability to maintain dimensional stability under sustained loads—is generally inferior in thermoplastics, particularly at higher temperatures.
Understanding Thermosets
Thermosets, also known as thermosetting plastics, undergo irreversible chemical changes during curing that create permanent cross-links between polymer chains. Once cured, these materials cannot be remelted or reshaped, as heating beyond their decomposition temperature causes chemical breakdown rather than melting.
The curing process transforms liquid or semi-solid precursors into rigid, three-dimensional network structures. This transformation typically occurs through chemical reactions triggered by heat, catalysts, or other curing agents, resulting in materials with excellent dimensional stability and heat resistance.
Key Properties of Thermosets
Thermosets excel in high-temperature applications due to their cross-linked molecular structure. They maintain mechanical properties at elevated temperatures where thermoplastics would soften or fail. This thermal stability makes thermosets ideal for applications involving continuous exposure to heat or thermal cycling.
Chemical resistance is another strength of many thermoset materials. The cross-linked structure prevents solvent penetration and swelling, maintaining material integrity in harsh chemical environments. Thermosets also exhibit excellent creep resistance, maintaining their shape under sustained mechanical loads.
The primary disadvantage of thermosets is their inability to be recycled through conventional remelting processes. Once cured, these materials can only be disposed of through incineration or grinding for use as fillers. Additionally, thermoset processing often requires longer cure times and more complex manufacturing procedures compared to thermoplastic processing.
Engineering Resins: Defining the Category
Engineering resins represent high-performance polymeric materials designed for demanding structural applications. These materials must meet stringent performance criteria including high strength-to-weight ratios, excellent dimensional stability, superior chemical resistance, and reliable performance across wide temperature ranges.
The classification of engineering resins isn’t limited to either thermoplastics or thermosets—both categories include materials that qualify for this designation. The key determining factors are performance characteristics rather than processing behavior.
Thermoplastic Engineering Resins
Several thermoplastic materials have earned recognition as engineering resins due to their exceptional properties and performance capabilities.
Polyetheretherketone (PEEK)
PEEK stands among the highest-performing thermoplastic engineering resins. This semi-crystalline polymer offers exceptional chemical resistance, outstanding mechanical properties at elevated temperatures, and excellent wear resistance. PEEK maintains its properties at continuous service temperatures up to 250°C, making it suitable for aerospace, automotive, and oil and gas applications.
Polyphenylene Sulfide (PPS)
PPS provides excellent chemical resistance and inherent flame retardancy while maintaining good mechanical properties at elevated temperatures. Its crystalline structure contributes to low moisture absorption and excellent dimensional stability, making it ideal for electrical and electronic applications requiring high reliability.
Polyoxymethylene (POM)
Also known as acetal, POM offers excellent mechanical properties, low friction, and good dimensional stability. Its combination of strength, stiffness, and processability makes it popular for precision mechanical components, gears, and automotive parts.
Liquid Crystal Polymers (LCP)
LCPs exhibit unique molecular alignment that provides exceptional strength and stiffness in the flow direction. These materials offer outstanding dimensional stability, low coefficients of thermal expansion, and excellent electrical properties, making them valuable for miniaturized electronic components.
Thermoset Engineering Resins
Thermoset materials also contribute significantly to the engineering resin category, offering unique advantages for specific applications.
Epoxy Resins
Epoxy thermosets provide excellent adhesion, chemical resistance, and mechanical properties. Their versatility allows formulation for specific applications, from structural adhesives to composite matrices. Epoxies cure at various temperatures and offer good electrical insulation properties.
Phenolic Resins
Phenolic thermosets offer excellent flame resistance, low smoke generation, and good mechanical properties. These characteristics make them valuable for fire-critical applications in transportation, construction, and electrical industries.
Polyimides
Thermoset polyimides provide exceptional thermal stability, maintaining properties at temperatures exceeding 300°C. Their combination of high-temperature performance and electrical insulation properties makes them essential for aerospace and electronics applications.
Selecting the Right Engineering Resin
Choosing between thermoplastic and thermoset engineering resins requires careful consideration of application requirements, processing constraints, and lifecycle factors.
Temperature requirements often drive material selection. For applications requiring continuous service above 200°C, thermoset engineering resins typically offer better performance. However, advanced thermoplastics like PEEK can compete in many high-temperature applications while offering processing advantages.
Recycling considerations favor thermoplastic engineering resins, as they can be reprocessed at end-of-life. This advantage becomes increasingly important as sustainability concerns drive material selection decisions.
Processing complexity and cost must also be evaluated. Thermoplastics generally offer faster processing cycles and lower manufacturing costs, while thermosets may require longer cure times and more complex tooling but can provide superior final properties.
Conclusion
Thermoplastics and thermosets both qualify as engineering resins, and the choice should depend on specific application needs such as thermal, chemical, and mechanical requirements. Consult material suppliers, conduct testing, and carefully evaluate options to ensure optimal performance, manufacturing efficiency, and long-term cost-effectiveness.
